Product Overview

LED Gooseneck; 30W/40W/50W; CCT Selectable 3K/4K/5K; White; 120-277V; With Photocell

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Outdoor

Sub Category:

Gooseneck-RLM

Style:

Traditional

Additional Info:

UV Powder Coated Finish

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

14.17

Dimmable:

Yes-Dimmable

Each Height:

10.04

Each Length:

20.28

Each Width:

16.14

Lumens:

3300L-5500L

Tariff Code:

9405.11.6010

Warranty:

5 Year Limited - Fixtures

Amps:

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

100

B_U_G_Rating:

B2-U2-G0

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80

Dark Sky Rated:

Yes

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard

DLC Primary Use:

Outdoor Full-Cutoff Wall-Mounted Area Luminaires

Each Cube:

1.9018

Each Quantity:

1

Efficacy:

110.00/110.00/110.00 LPW

FCC Compliant:

Yes

Feature 1:

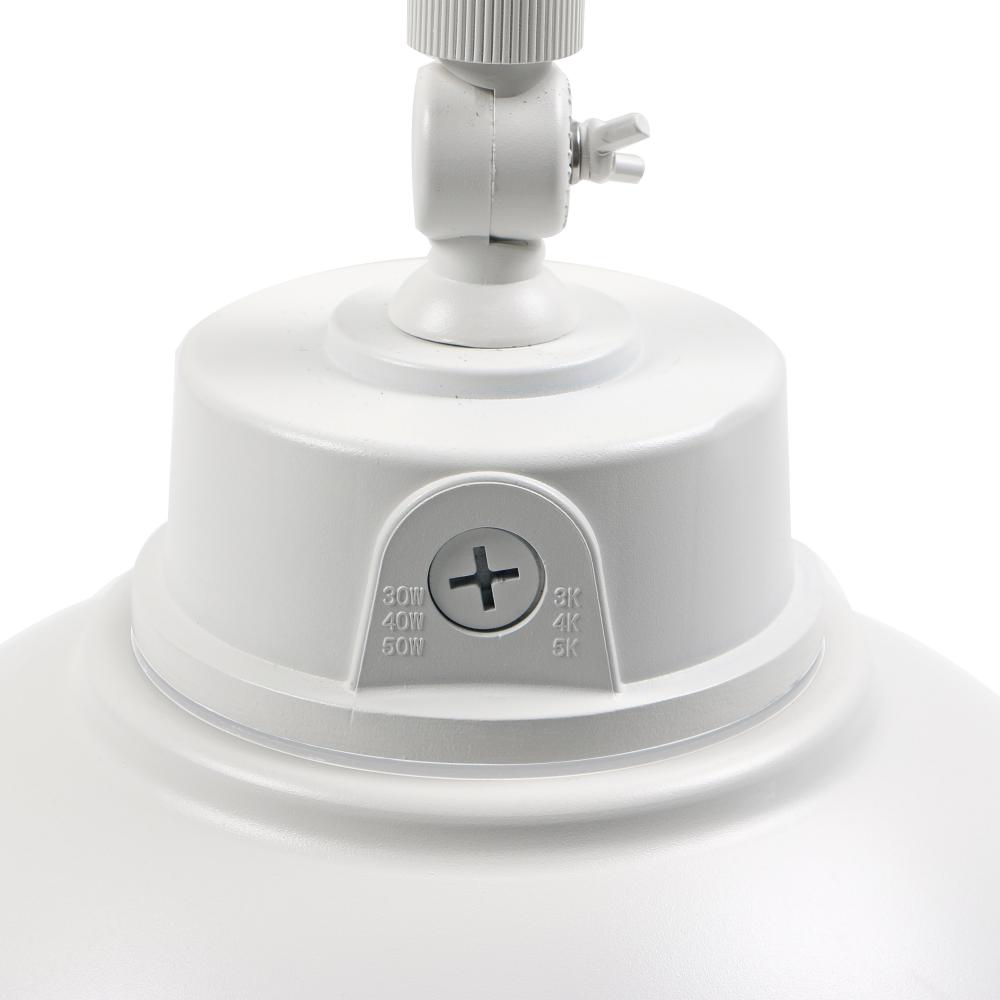

Wattage and CCT Selectable

Feature 2:

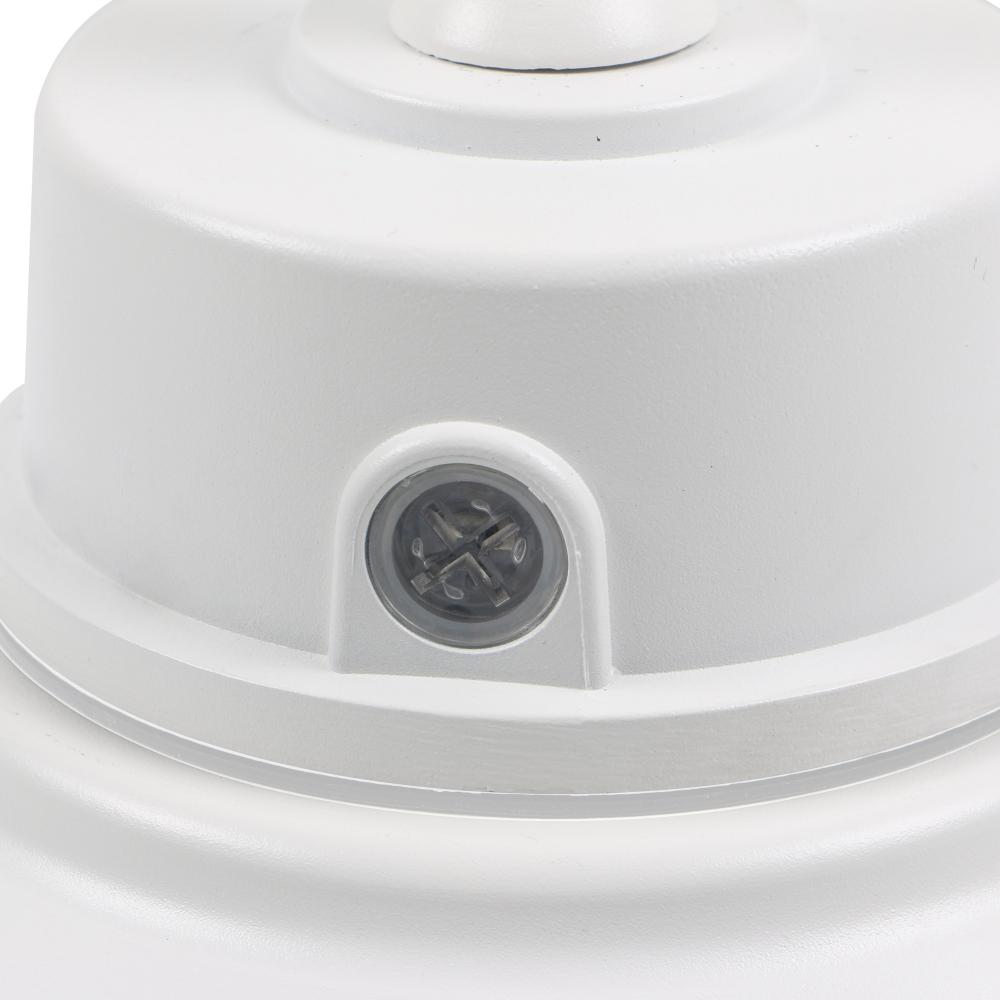

Integrated By-Passable Photocell

Feature 3:

0-10V Dimmable

Feature 4:

2KV Built-in Surge Protection

Feature 5:

5 Year Warranty

Feature 6:

Includes 16 in. Mounting Arm; 24 in. Accessory Mounting Arm Available

Feature 7:

IP65 Rated

Feature 8:

Rugged UV Powder Coated Finish

Finish Family:

White

Incandescent Equivalent:

250W/300W/400W

Includes:

Includes 16" Mounting Arm

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

The classic gooseneck fixture is one we have all seen often, but never with the technologies now available from SATCO|NUVO's 65-660, LED Gooseneck in a white finish. Popular for so many applications, it might seem hard to make it even more versatile, b

Material:

Die-cast Aluminum

Mounting Diameter:

4.65

Mounting Extends:

2.13

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +50C (+122F)

Pack Type:

Box

Photocell:

Has Photocell

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The classic gooseneck fixture is one we have all seen often, but never with the technologies now available from SATCO|NUVO Lighting. Popular for so many applications, it might seem hard to make it even more versatile, but with added CCT and Wattage selecta

Safety Listing:

cULus - Listed;cULus - Certified;cETLus - Listed

SDS class:

LED_Fixture

Short Description:

LED GOOSENECK WHITE FINISH

Specification Notes:

For International Dark Sky compliance, the fixture CCT must be set to 3000K and installed in a downward facing and locked position.

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

5.20%

Wattage Selectable:

Yes

Weight Lb.:

4.4
